Description

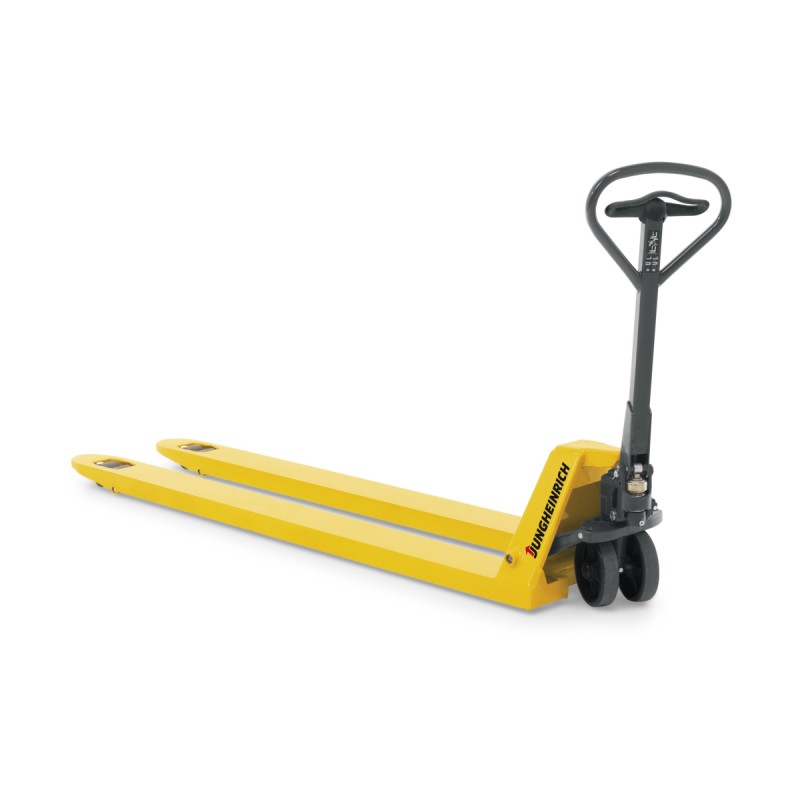

The Jungheinrich AM 30 hand pallet truck with quick lift is a reliable aid for transporting goods weighing up to 3000 kg. The robust construction is maintenance free thanks to the high-quality pump hydraulics and lifetime lubrication of all joints.

  • Hard-wearing heavy-duty pallet truck with a capacity of 3000 kg
  • Time-saving rapid lift for loads of up to 120 kg
  • Ergonomic tiller suitable for both right and left-handed users
  • Flexible steering angle of up to 105° for excellent manoeuvrability
  • Highly robust and maintenance-free – the heavy-duty hand pallet truck with quick lift

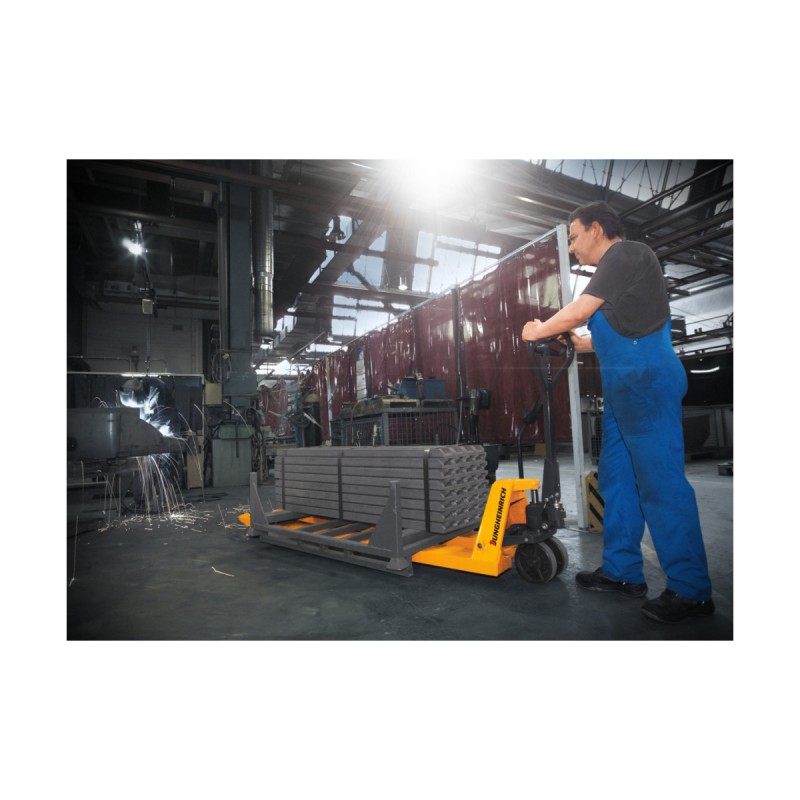

When moving heavy goods weighing up to 3000 kg around your warehouse, the Jungheinrich AM 30 hand pallet truck offers reliable stability combined with excellent operating characteristics. In the case of lighter loads, you can use the quick lift function to lift pallets off the ground with just three pumps of the tiller. The full lift height is reached after five pumps.

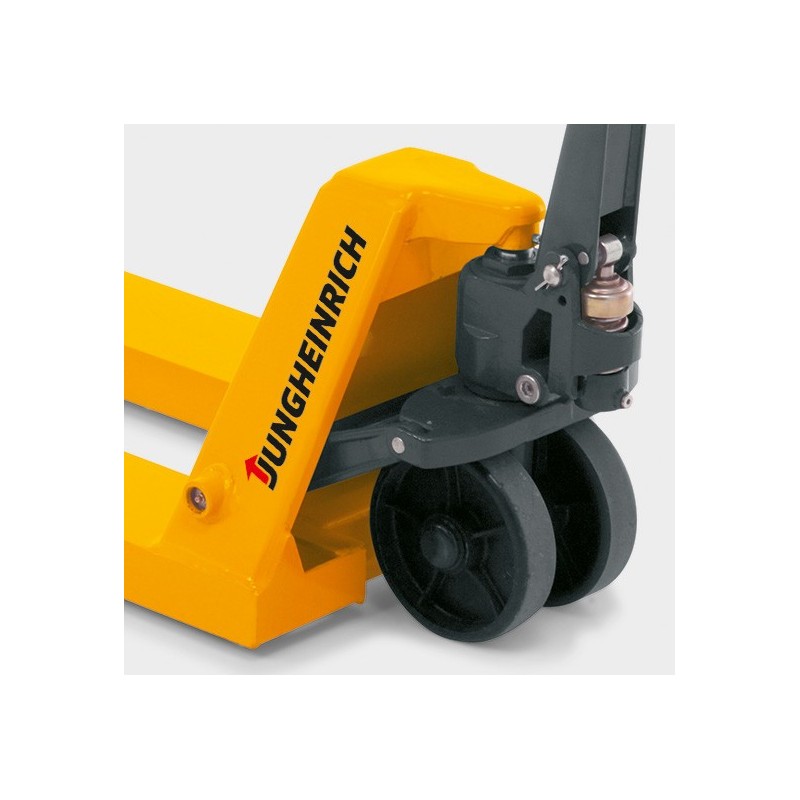

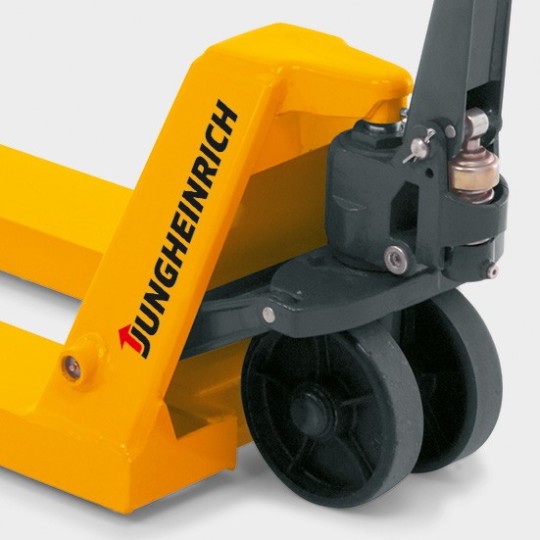

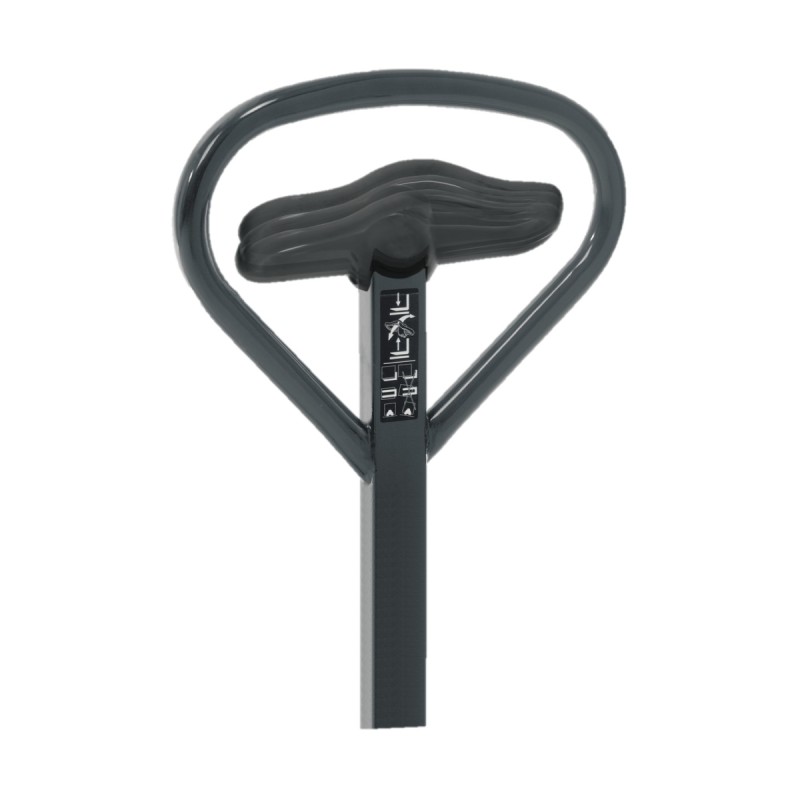

The pallet truck offers excellent comfort, even in narrow aisles or on winding routes. A 105° steering angle on both sides ensures maximum manoeuvrability at all times. The pallet truck is controlled using an ergonomic tiller that is equally well suited to right and left-handed users. Thanks to the sophisticated pump hydraulics, even the heaviest of pallets can be lifted with minimal effort. Protected entry rollers and rounded fork tips ensure that picking up the goods is a very straightforward process. Hard steel construction, a powder-coated surface, chromated wheel bushings and joints as well as a welded tiller mount all combined to deliver a product with maximum durability. Both the steering castors and the tandem fork rollers are made from hard-wearing, abrasion-resistant polyurethane. We offer the heavy-duty hand pallet truck with a number of different fork lengths.

Transport your heavy goods with maximum comfort and safety by ordering the Jungheinrich AM 30 hand pallet truck with quick lift and 3000 kg capacity from our shop.

Aisle width
1803mm
Capacity
3000kg
Chassis surface
Powder-coated
Colour chassis
Jungheinrich yellow
Control panel
Two-handed
Drive
Manual
Drive wheel diameter
200mm
Drive wheel material
Polyurethane (PU)
Drive wheel width
50mm
Face of forks length
383mm
Fork height
45mm
Fork roller diameter
80mm
Fork length (mm)
1220mm
Fork roller equipment
Tandem
Fork roller material
Polyurethane
Fork roller width
70mm
Fork width
160mm
Ground clearance
36mm
Handle fittings
Steel
Infeed rollers
Yes
Lift
120mm
Lift height per pump stroke
10mm
Lift range
85 - 205mm
Load centre
600mm
Lowering speed with/without load
0,09 / 0,05m/s
Model
Jungheinrich AM 30
Net weight
86kg
Operator type
Manual
Overall length
1603mm
Overall width
550mm
Pallet truck material
Steel
Pump strokes to lift pallet
7
Pump strokes to max. lift height
12
Rapid lift
Yes
Route
Short distance
Tiller height
1230mm
Tiller RAL colour
RAL 7016 anthracite grey
Tiller surface
Powder-coated
Turning radius
1319mm

Hand Pallet Truck AM 30 | 3000kg (550x1220mm)

  • Load capacity 3000kg
  • Polyurethane (non-marking) wheels
  • Fork length 1220mm, Fork width 550mm
  • 6 months warranty

$799
$759 You Save 5%
Tax excluded
Limited offer until: 11/30/2024 Days remaining: 15
50437756
Status: In stock

Delivery: 3-5 working days
